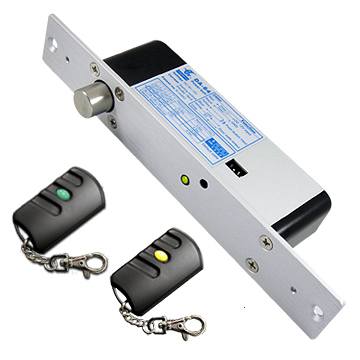

Description
Features
- Fail safe type released as power off.

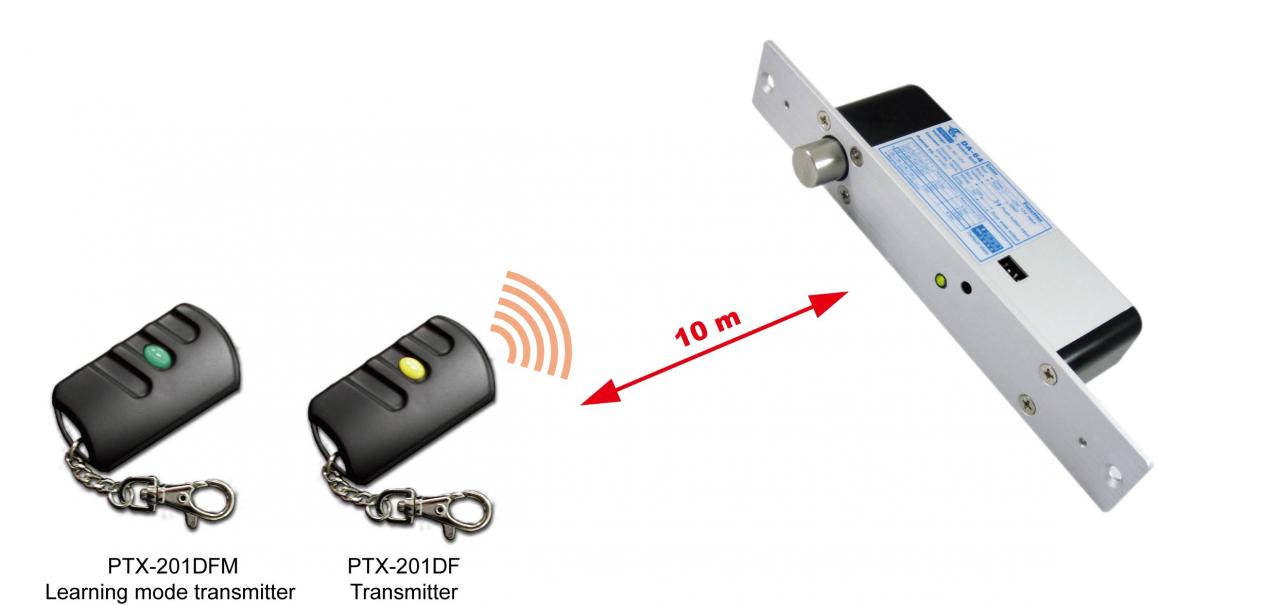

- Remote release control ranges up to 10 meters.
(For reference only, sensing distance depends on on-site environment) - With learning mode button for memory up to 40 pieces transmitter ID’s.
- With LED for indicating power & bolt status.
- Compact structure without additional installation of transmitter receiver and wiring.
- Optional bracket (PG-B64 & PG-DASTC-2) for frameless glass door.
- Electric deadbolt design suitable for double swing door with 180° opening angle.
- With DIP switch for setting time delay for opening(3, 6, 10sec.) & relock door.
- Low working current, no over heating problem.
Specifications
| NOMINAL VOLTAGE | DC11~16V |
|---|---|
| STANDBY CURRENT | 90~100mA |
| WORKING CURRENT | 820~870mA |
| TEMP. RANGE | -20°C ~ 70°C |
| POWER CONSUMPTION | 1.1W(standby) / 13.9W(work) |
Application
For emergency door, swing glass door, wooden door

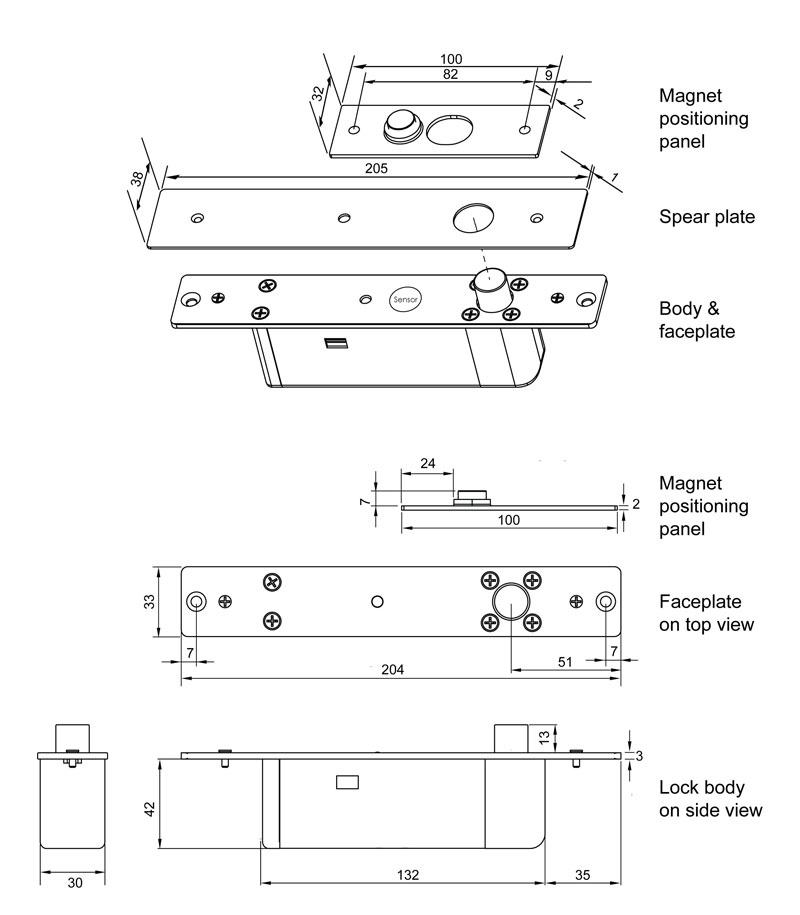

Dimension: Unit(mm)
Accessories

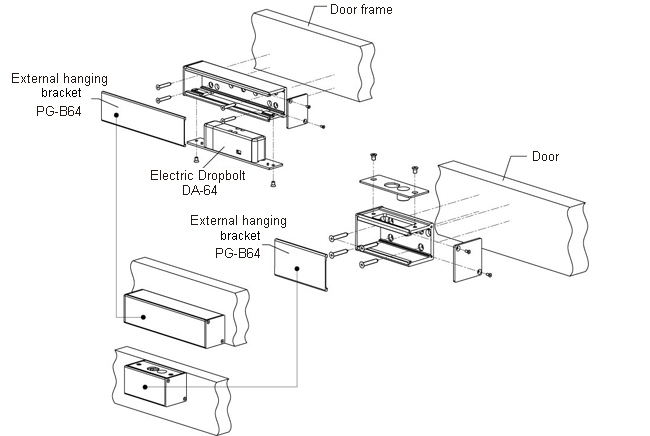

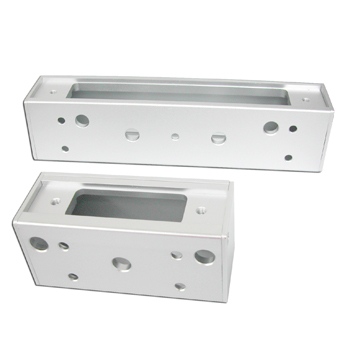

External hanging bracket – PG-B64

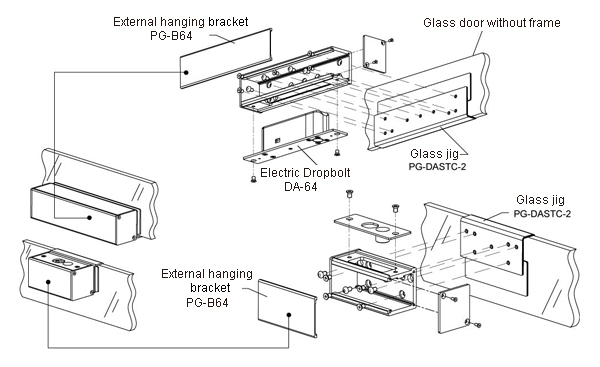

For glass door without frame

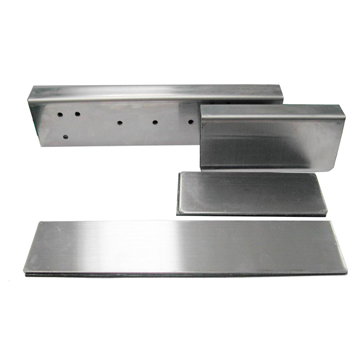

External hanging bracket – PG-B64 + Glass jig – PG-DASTC-2
We reserve the right to change the specification without prior notice or obligation!
