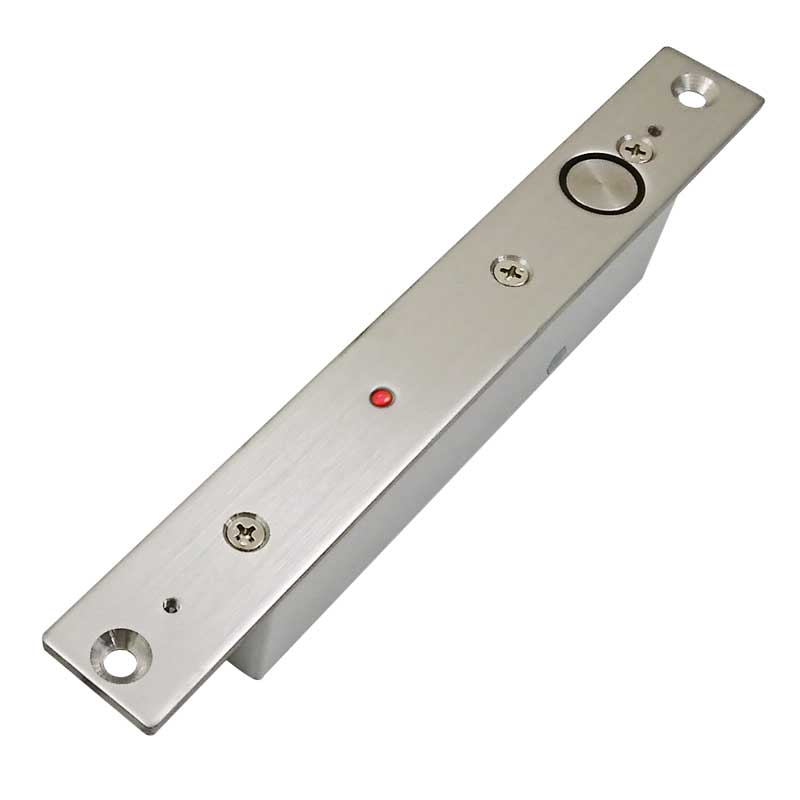

Description
Features
- Fail safe type released as power off.
- With magnetic switch door position sensor
- With DIP switch for setting time delay for opening(4, 5, 10sec.) & relock door
- Electric drop bolt design suitable for double swing door with 180° opening angle
- With power LED indicator
- Low working current, no over heating problem.
- With exit function thru low current contacts.
Specifications
| NOMINAL VOLTAGE | DC 12V |
|---|---|
| VOLTAGE TOLERANCE | -5%~+10% |
| STANDBY CURRENT | 120mA |
| WORKING CURRENT | 1000mA |
| TEMP. RANGE | -20°C ~ 70°C |
Application

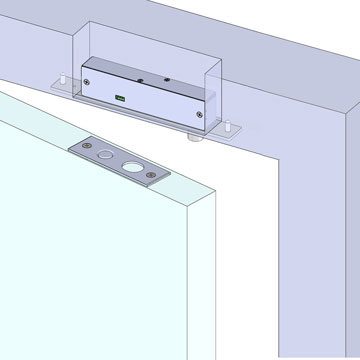

For emergency door, swing glass door, wooden door

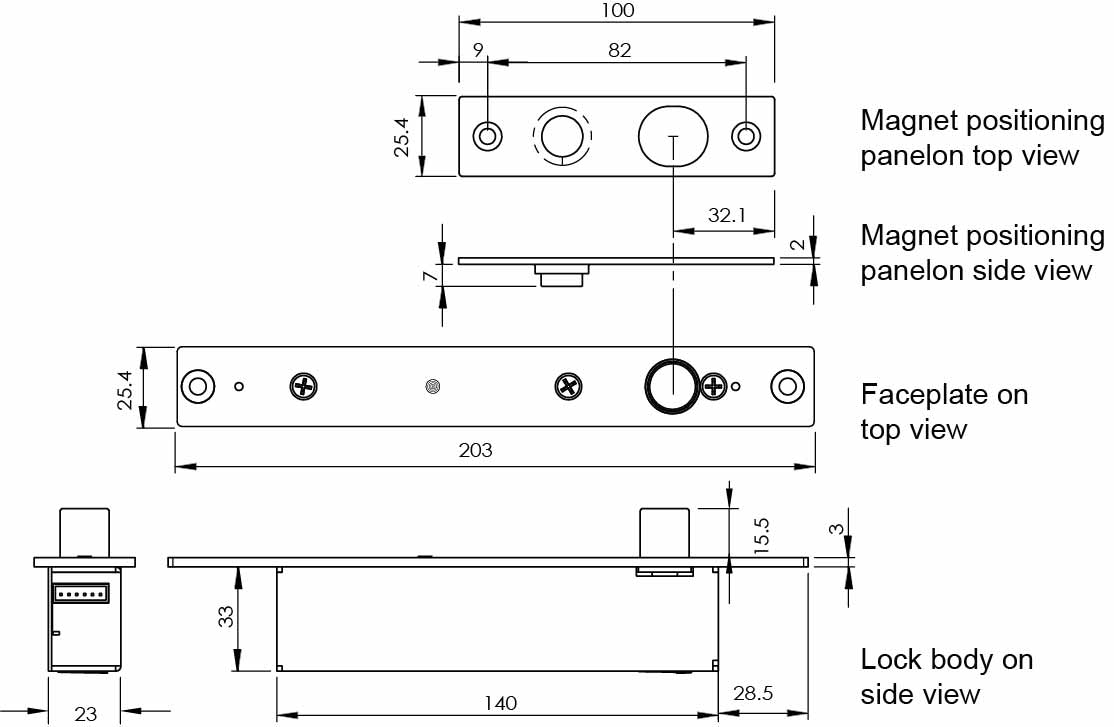

Dimension: Unit(mm)
